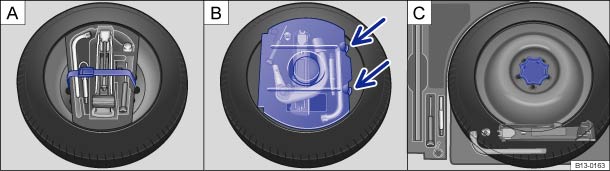

Fig. 161 In the luggage compartment underneath the floor covering A: Spare wheel and vehicle toolkit without ball coupling, B: Spare wheel and vehicle toolkit with ball coupling, C: Spare wheel and vehicle toolkit without ball coupling
First read and observe the introductory information and safety warningsThe vehicle tools, spare wheel, temporary spare wheel or breakdown set and removable ball coupling of the towing bracket are located in the luggage compartment underneath the floor covering.
In order to lift up the floor covering, the variable luggage compartment floor must first be folded up and secured in place .
Stowage in the luggage compartment | Action |
---|---|
In a foam rubber holder A under the floor covering: | – Pull the floor covering up by the loop and hook it in place. |
– Open the retaining strap. | |
– Remove foam rubber holder with vehicle tool kit. | |
In a container B under the floor covering: | – Pull the floor covering up by the loop and hook it in place. |
– Press out the tabs (arrows) to open the container. | |
In the two foam rubber holders next to or under the emergency spare wheel C under the floor covering: | – Pull the floor covering up by the loop and hook it in place. |
– Remove the temporary spare wheel if necessary . |
After using the vehicle jack, crank it back to its original position so that it can be stored safely.
