Volkswagen Polo Owners Manual: Front view

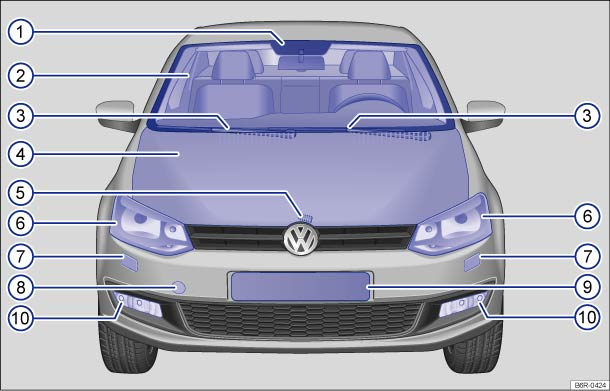

Fig. 2 Overview of the front of the vehicle

Key for :

  1. Rain/light sensor on the mirror base
  2. Windscreen
  3. Windscreen wiper
  4. Bonnet
  5. Bonnet release lever
  6. Headlights
  7. Headlight washer system
  8. Mounting for the front towing eye behind a cover
  9. Front number plate holder
  10. Fog lights or dynamic cornering light
Side view
Fig. 1 Overview of the right side of the vehicle Positions ③, ④, ⑤ and ⑤ are also at the same position on the left side of the vehicle. Key for : Tank flap Roof aerial Attachme ...

Rear view
Fig. 3 Overview of the rear of the vehicle Key for : Roof aerial High-mounted brake light Rear window Rear window heating Window aerial Rear window wiper ...
