Volkswagen Polo Service & Repair Manual: Protecting
Caution
| Missing protection leads to the electrical system
damage. |
|
 Note
| All threaded connections must be tightened to the specified
torque. |
| When applying protection, always use the accompanying hose
on the protection container. |
| Protection wax is used in the cool area. |
| Cavity protection wax is used in the warm area. |
| The protection material draws itself into the affected
places by capillary action. |
|
|
|
| – |

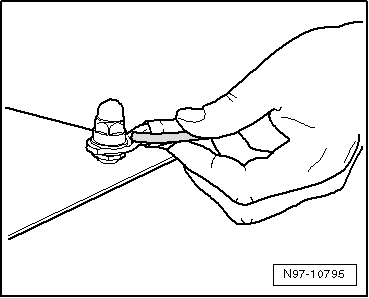

Hold the injector under the wiring eyelet and spray all
around the pins. |
|
|
|
| – |

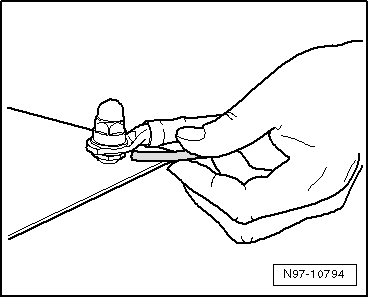

Hold the injector above the wiring eyelet and spray all
around the pins and wiring eyelet. |
|
|
|
Special tools and workshop equipment
required
Torque Wrench 1331 5-50Nm -VAG1331-
The Contact Surface Cleaning Set -VAS6 ...
