Volkswagen Polo Service & Repair Manual: Valve, Removing and Installing, Metal Valve

Special tools and workshop equipment required
Torque Wrench -VAG1410-
Perform the Following:
Removing
–  Remove the Tire Pressure Monitoring Sensor. Refer to → Chapter „Tire Pressure Monitoring Sensor without Metal Valve, Removing and Installing, Service Version“.

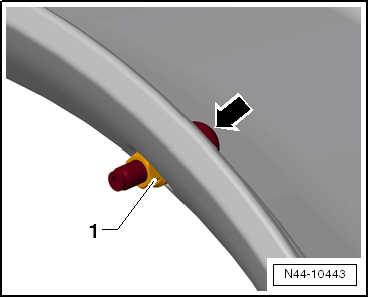

–  Remove the nut -1- from the metal valve.
–  Counterhold -arrow- the metal valve using a retainer (for example 2 mm spiral bore) while doing so.
Installing
  Caution
Only apply the specified torque to tighten the nut for the metal valve. Tightening more is not permitted because it damages the seal.


Valve, Removing and Installing, Metal Valve

–  Tighten the nut -1- of the metal valve.
–  Counterhold -arrow- the metal valve using a retainer (for example 2 mm spiral bore) while doing so.
–  Install the Tire Pressure Monitoring Sensor. Refer to → Chapter „Tire Pressure Monitoring Sensor without Metal Valve, Removing and Installing, Service Version“.
Tightening Specifications
Refer to → Chapter „Overview - Tire Pressure Monitoring Sensor without Valve“
