Volkswagen Polo Service & Repair Manual: Refrigerant Circuit with Restrictor and Reservoir

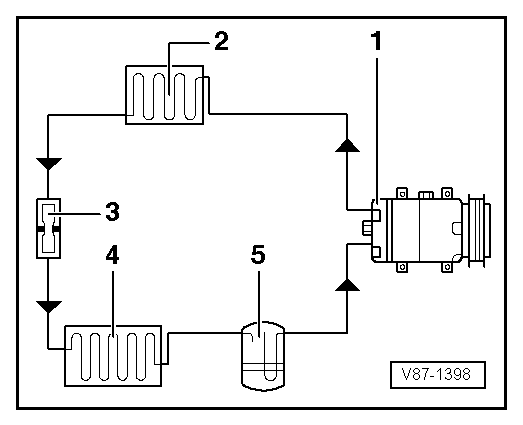

1 -  A/C Compressor
2 -  Condenser
3 -  Restrictor
4 -  Evaporator
5 -  Reservoir with dryer bag
  Note
Arrows point in direction of refrigerant flow.


Refrigerant Circuit with Restrictor and Reservoir

Refrigerant Circuit with Expansion Valve and Evaporator
1 -  Evaporator 2 -  Expansion Valve 3 -  Valve for extracting, filling and measuring ...

Refrigerant Circuit Extraction and Filling Valves for Service Station Couplings
...
